High speed fish mask machine HD-11301

This machine is mainly used for automatic forming of folding mask: the whole roll of cloth is driven through the roller after rolling, and the cloth is welded through the outline edge; The whole roll of the nose bridge strip is drawn and unrolled. After fixed cutting, it is introduced into the automatic folding, formed by ultrasonic welding, and formed by cutting knife. Directly (or after turning over) the mask is transported to the welding station of the ear band of the mask through the assembly line, and the mask is finally formed through ultrasonic welding; When the mask is made, it is sent to the flat belt line through the assembly line for collection.
  • Product Details
  • Product Parameters

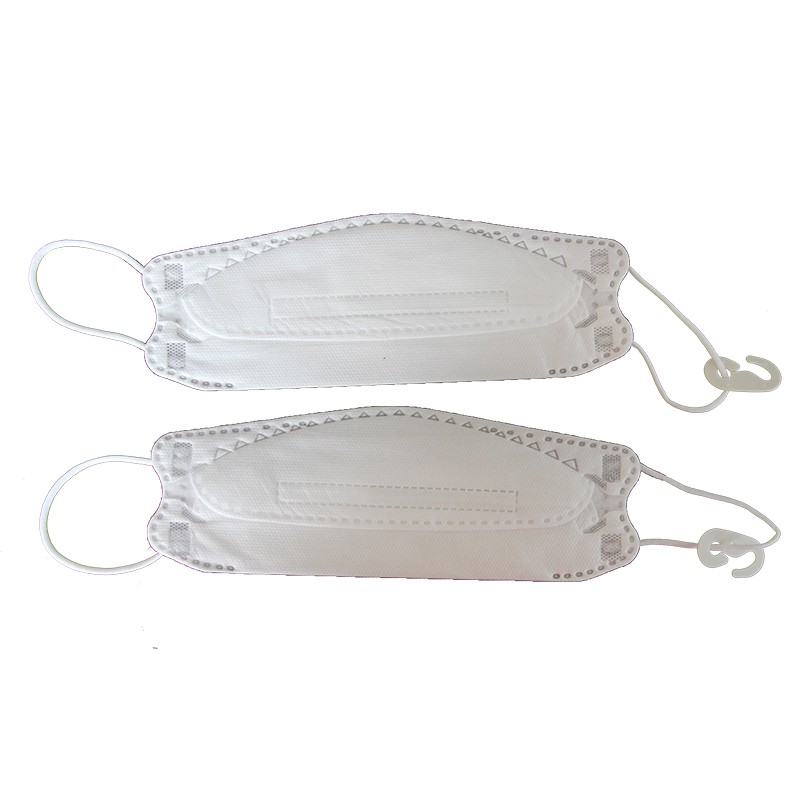

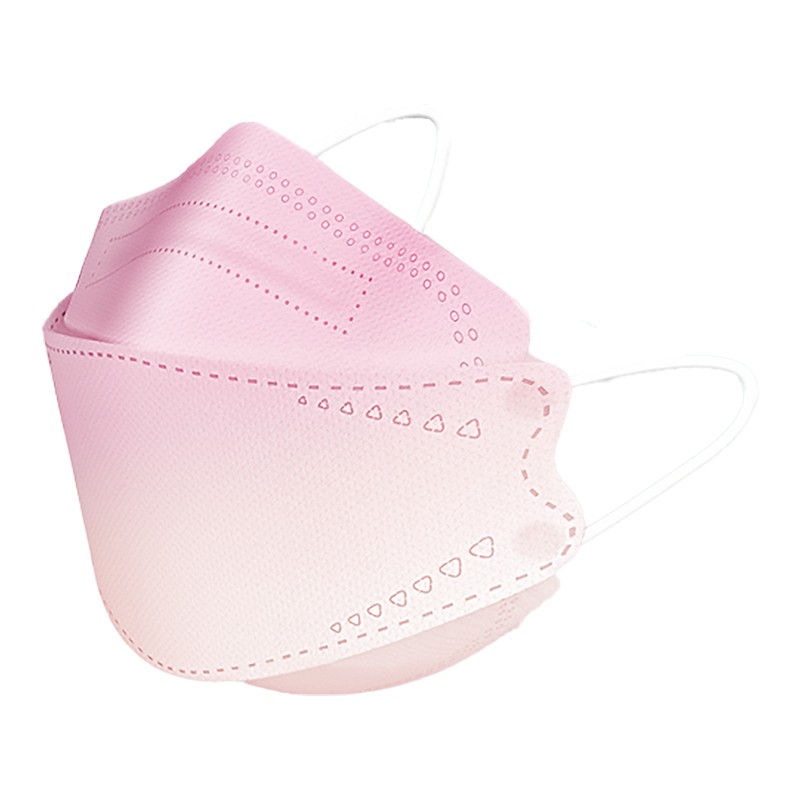

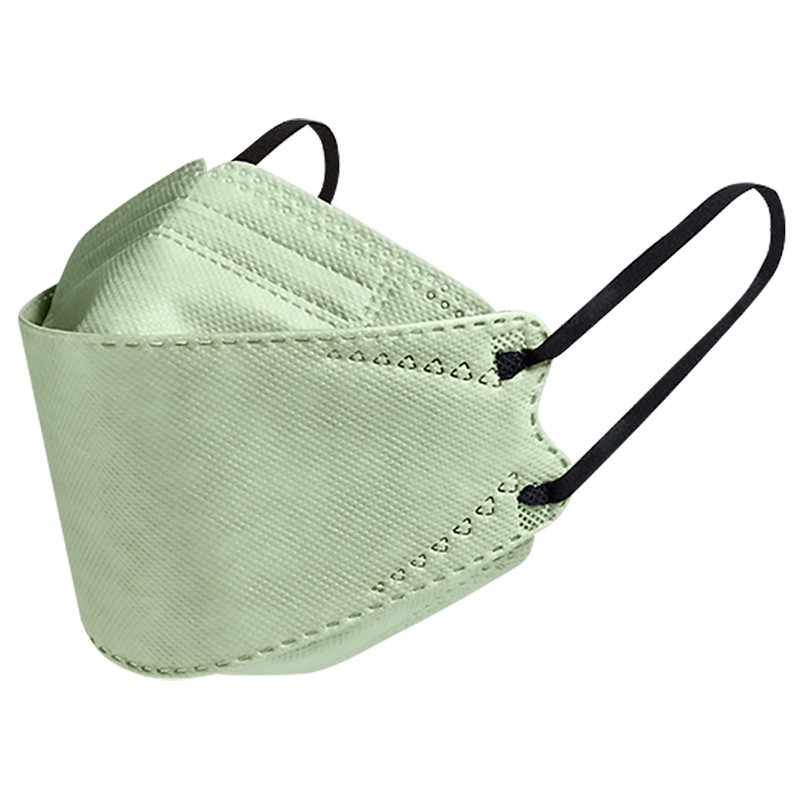

  • Sample Display

This machine is mainly used for automatic forming of folding mask: the whole roll of cloth is driven through the roller after rolling, and the cloth is welded through the outline edge; The whole roll of the nose bridge strip is drawn and unrolled. After fixed cutting, it is introduced into the automatic folding, formed by ultrasonic welding, and formed by cutting knife. Directly (or after turning over) the mask is transported to the welding station of the ear band of the mask through the assembly line, and the mask is finally formed through ultrasonic welding; When the mask is made, it is sent to the flat belt line through the assembly line for collection.


Equipment features:

A. Integral folding plate. The folding plate adopts integral design, convenient adjustment and quick recovery after fault handling.

B. Film turning mechanism. Silver and gold molding + step drive turning mechanism, high speed and stability.

C. Oblique clamp design. Oblique clamp design, round ear belt flat ear belt are applicable, beautiful solder joint, stable.

D. Deviation correction system (optional). Optional fabric correction system makes the equipment more stable when running at high speed.


Production rate

90~120 tablets/min

Product size (mm)

According to customer requirements

Device shape (mm)

6300x2600x1650

Machine weight

Approx. 1500Kg

Electricity demand

AC 220v/50Hz Rated power 15Kw

Gas requirement
