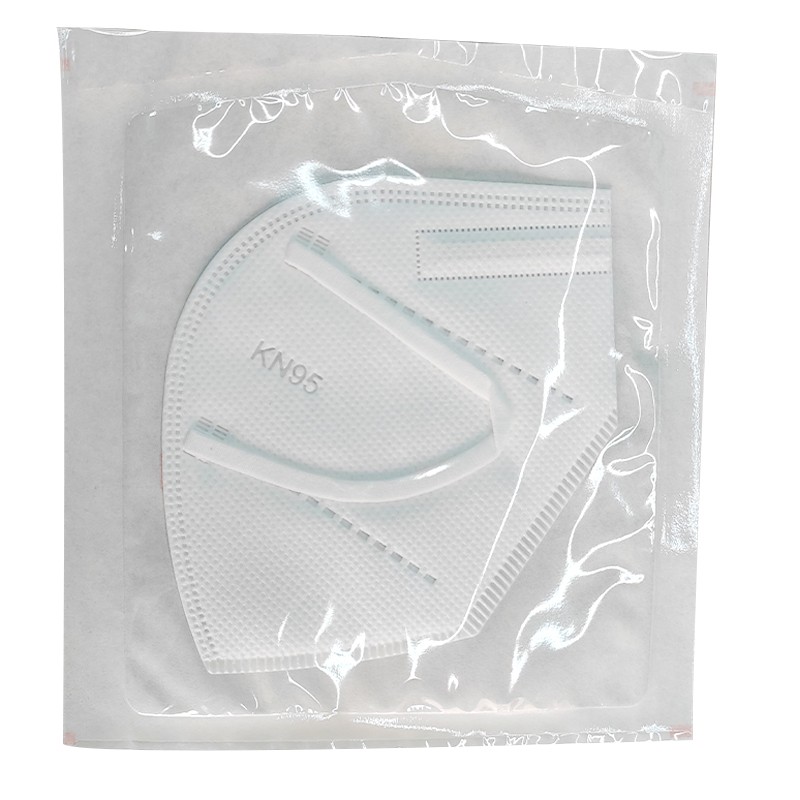

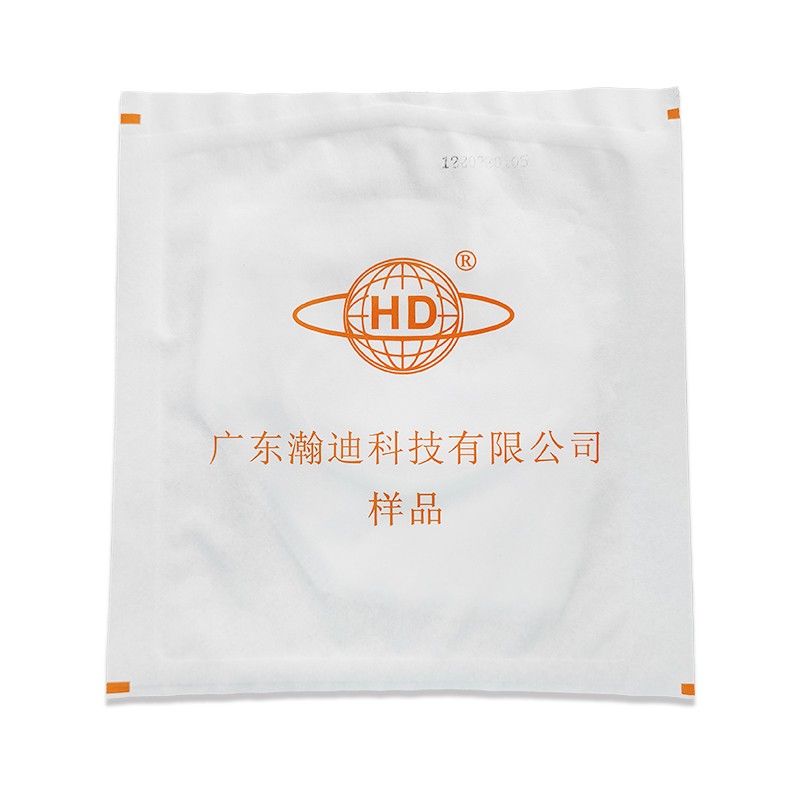

This machine is suitable for composite film, aluminum-plastic film, pure aluminum film, aluminum-plated film, coated paper and other medicine, health care, chemical industry, light industry, food industry solid flake goods packaging, main functions: automatic roll film conveying, automatic bag making, automatic material filling, graphic plate, automatic coding (printing batch number), flat press hot sealing, easy to tear punching, plate cutting, finished product output, waste recycling.
Equipment features:
A. Up and down winding film automatic servo feeding forming bag making, color marking photoelectric mechanism, can be printed picture and text matching;
B. Mechanical heating seal: using CAM mechanical structure positive pressure, upper and lower mesh plate with double heating heat sealing, so that the plate is more flat, completely ensure the heat sealing pressure of packaging materials, to ensure that packaging products are not ventilated, no leakage seal. Completely avoid the disadvantages of the past roller line heat seal structure heat leakage is not strict;
C. Easy to tear automatic punching, so that your packaging products use more beautiful and generous;
D. Adopts high-end PLC control, touch screen operation, Chinese and English digital display, servo film feeding, servo rotary cutting, servo feeding, servo traction, traction length can be adjusted on the touch screen within the traction size range;
E. Orderly output of finished products conveyor belt, and equipped with waste collection device, waste collection is easy.
| Production model | HD-15106 |
| Production rate | 35-45 edition/min (specific actual layout according to the product) |
| Max bag size (mm) | 250mm x 360mm (single board) |
| Device shape (mm) | L4700*W1910*H1600 |
| Electricity demand | AC380V,50Hz, rated power 12kw |
| Gas requirement | ≥0.25m³/min (self-provided) Pressure: 0.6 ~ 0.8Mpa |
| Machine weight | Approx. 2100kg |
| Working environment | Temperature 10~35℃, humidity 5~35%HR, no dust (cleanliness not less than 100,000) |
