Automatic cup mask ear belt nailing machine HD-11717

​N95 mask welding and punching machine is the third generation of mask welding and punching products, compared with the previous generation of mask welding and punching machine, the machine has a high degree of automation, mainly using the principle of ultrasonic welding and automatic edge sealing, the machine to complete the welding and punching process of cup mask edge through the further improvement of structural components, the equipment runs stably, the efficiency and productivity have been increased.
  • Product Details
  • Product Parameters

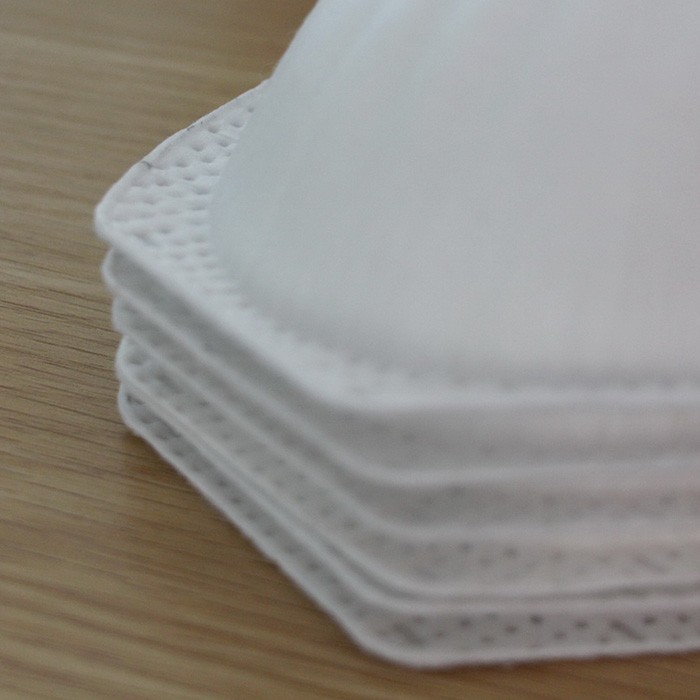

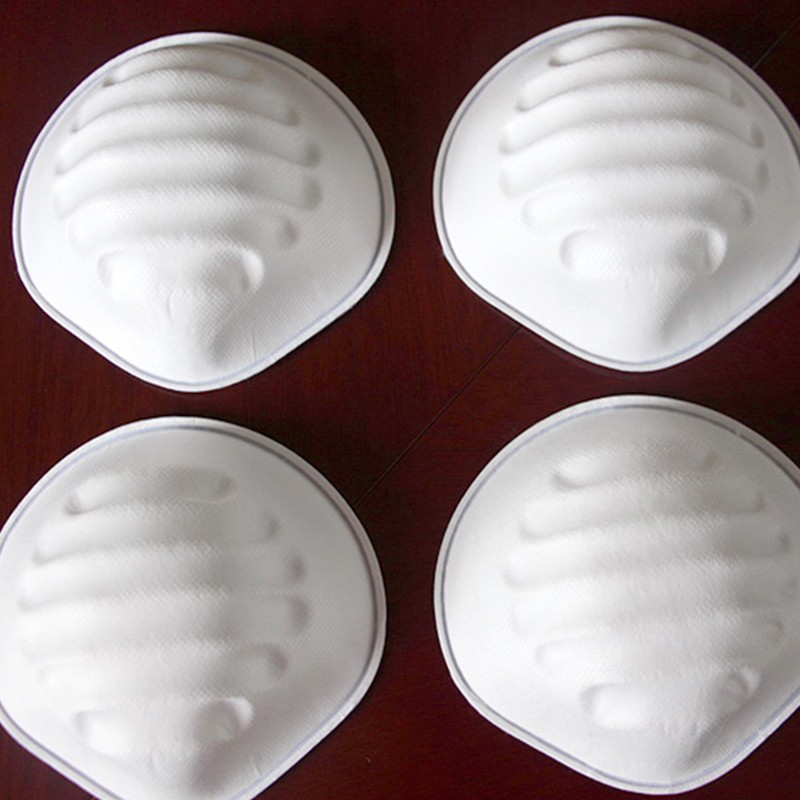

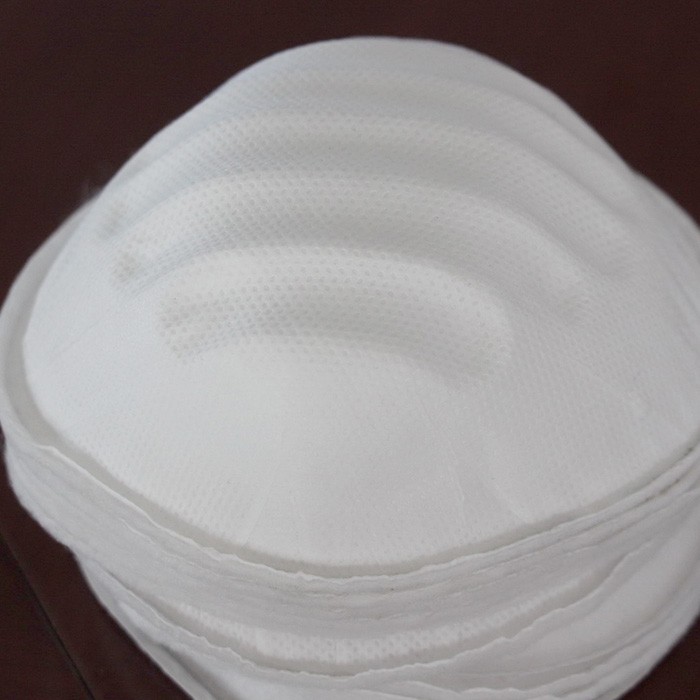

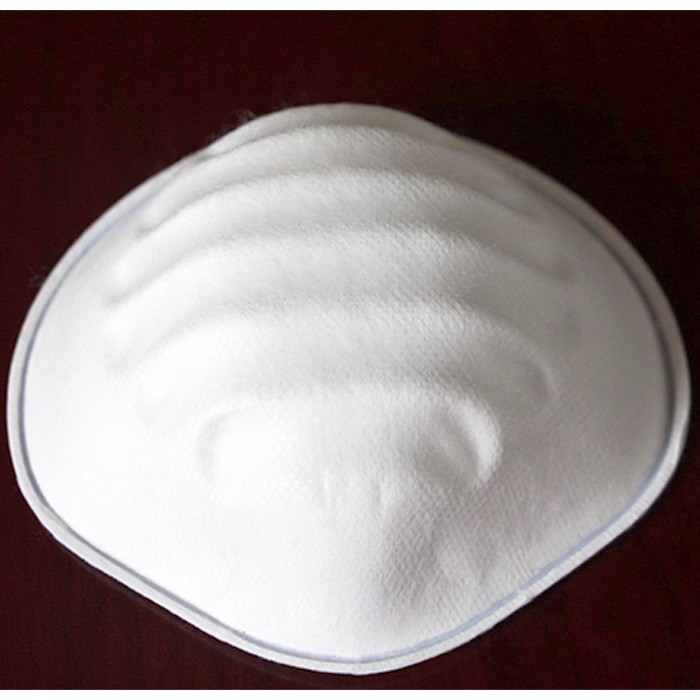

  • Sample Display

N95 mask welding and punching machine is the third generation of mask welding and punching products, compared with the previous generation of mask welding and punching machine, the machine has a high degree of automation, mainly using the principle of ultrasonic welding and automatic edge sealing, the machine to complete the welding and punching process of cup mask edge through the further improvement of structural components, the equipment runs stably, the efficiency and productivity have been increased. The servo positioning and rotating operation mode is adopted, so that the mask can achieve the combination of ultrasonic welding and punching in the process of high-speed operation. The whole machine is made of excellent alloy, the equipment can not fall back when welding, there is no burr when punching the mask, and the rotary plate rotates automatically to level the mask, thus protecting the quality of the mask produced.


Equipment features:

1, the machine adopts PLC control, man-machine interface touch screen display, display humanized operation concept.

2, the use of ultrasonic welding, attached to the cutter die cutting device, welding and punching do not need to be repeated

3, multi-station turntable, welding at the same time with cutting device, welding and cutting two heads work at the same time.

4, this machine can be used single, as long as the workers put materials, take materials on the line, can greatly save labor, make the production of cup masks simple and fast.

5, welding and cutting two heads work at the same time, six stations automatic rotation, action without deviation.


Production rate

15-20 tablets per minute

Product size (mm)

According to customer requirements

Device shape (mm)

1000mm*900mm*1800mm

Machine weight

Approx. 1000kg

Electricity demand

AC 220v/50Hz Rated power 550 W

Gas requirement

3-7 5 kg/cm²
